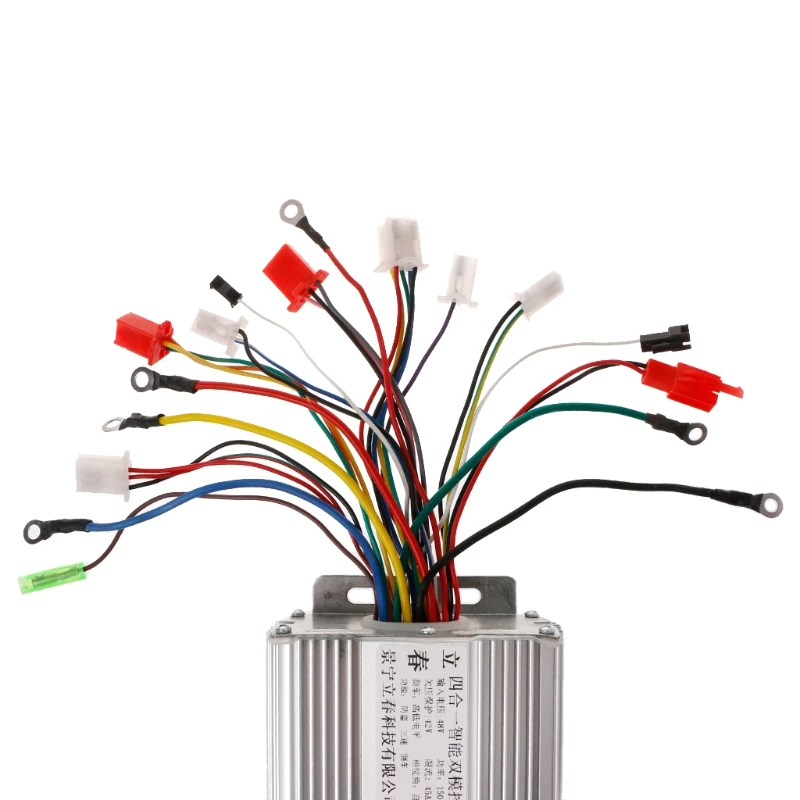

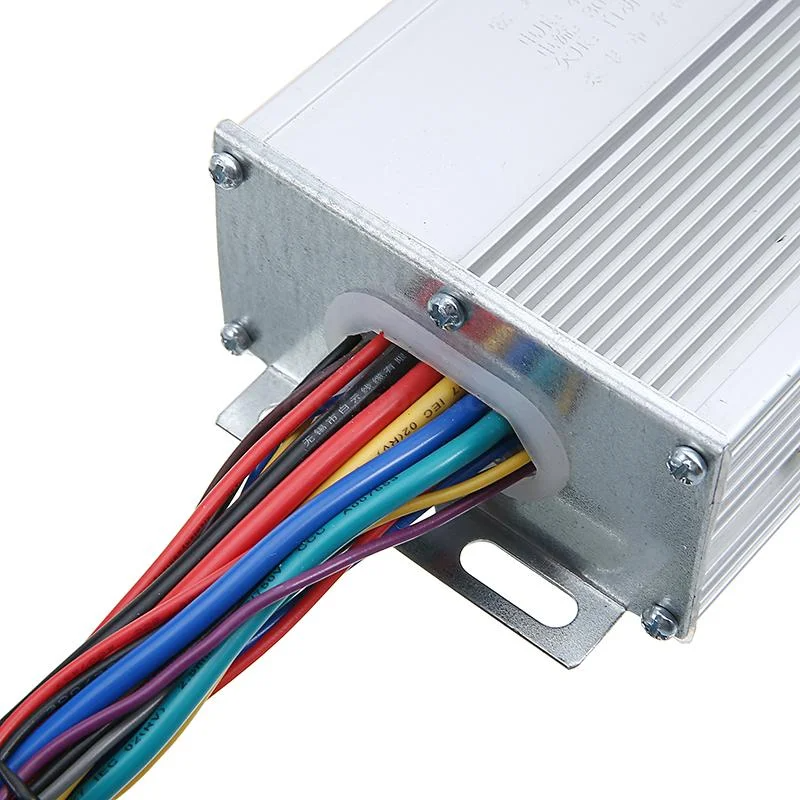

DC 48-64V 350W Brushless Motor Controller E-bike Bicycle Scooter
Original price was: ₨6,000.00.₨4,000.00Current price is: ₨4,000.00.
Description
Specifications:
- Brand new
- Size: approx. 103*70*35mm
- Rated Voltage: 48-64V
- Rated Current: 7A
- Rated Power: 350W
- Matching Motor: Brushless motor
- Under Voltage Protection: 41V
- Throttle Voltage: 1V to 4.2V
- Phase Angle: 60/120 degrees
- Brake Level: Low /High
- Heat Dissipation: Natural cooling
- Ambient Temperature: -20 degrees to 50 degrees
- Protection Grade: IP55
Features:
- Motor brushless controller for electric bicycle & scooter.
- 12pcs MOS tubes.
- Fine workmanship.
- Easy to install.
- Long service life.
Operation Notice:
- Connect power, motor, and throttle, and power lock, but not connect the Hall lines. Connect the adaptive learning wire.
- Switch on the power lock, roll the throttle. If the motor works well, connect the Hall lines.
- If the motor rolling reversely, disconnect the adaptive learning wire and check the motor again, before connecting the Hall wire.
Package Included:
- 1 x Motor Brushless Controller
Note:
- Please allow 0-1cm size errors due to manual measurement.
- Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
